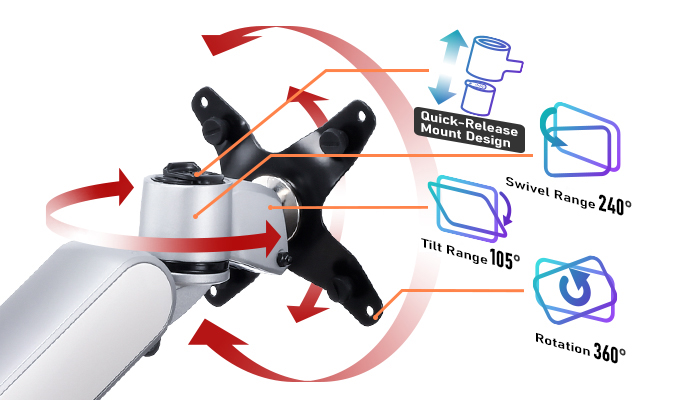

Free Movement • Comfortable Experience
Move freely, rotate effortlessly, and find the angle that suits you best.
Free Movement • Comfortable Experience
Move freely, rotate effortlessly, and find the angle that suits you best.
Universal VESA Standard
A globally unified standard compatible with most monitors.
Universal VESA Standard
A globally unified standard compatible with most monitors.

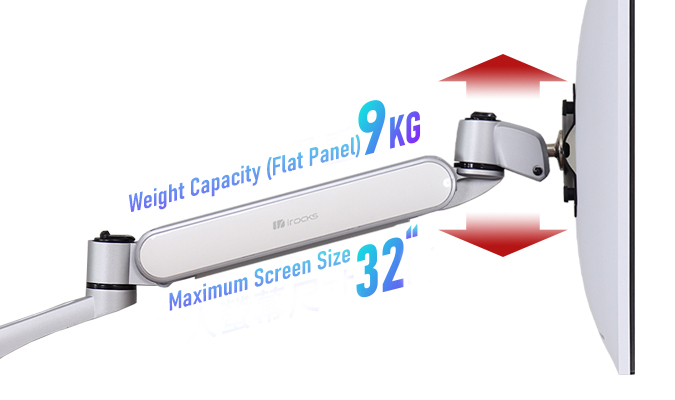

Balanced Settle-Free Experience
Flat Monitors: Supports 2–9kg, up to 32 inches
Curved R1000: Supports up to 5kg, up to 32 inches
Curved R1500: Supports up to 6kg, up to 32 inches
Curved R1800: Supports up to 6kg, up to 32 inches
Balanced Settle-Free Experience
Flat Monitors: Supports 2–9kg, up to 32 inches
Curved R1000: Supports up to 5kg, up to 32 inches
Curved R1500: Supports up to 6kg, up to 32 inches
Curved R1800: Supports up to 6kg, up to 32 inches

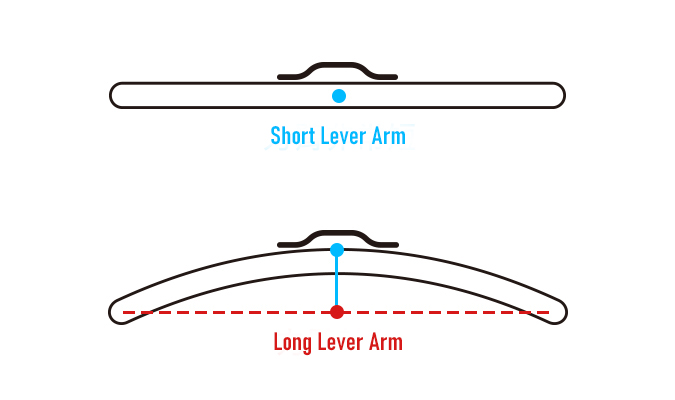

Why Can Flat Monitors Support More Weight Than Curved Ones?
Flat monitors have a much shorter moment arm, allowing the mount to handle more weight compared to curved monitors. As a result, flat monitors are supported with a higher weight capacity.
Why Can Flat Monitors Support More Weight Than Curved Ones?
Flat monitors have a much shorter moment arm, allowing the mount to handle more weight compared to curved monitors. As a result, flat monitors are supported with a higher weight capacity.
Quick Assembly • Safety Latch
Parts automatically lock in place to prevent accidental disconnection and damage. One push releases them for quick disassembly.

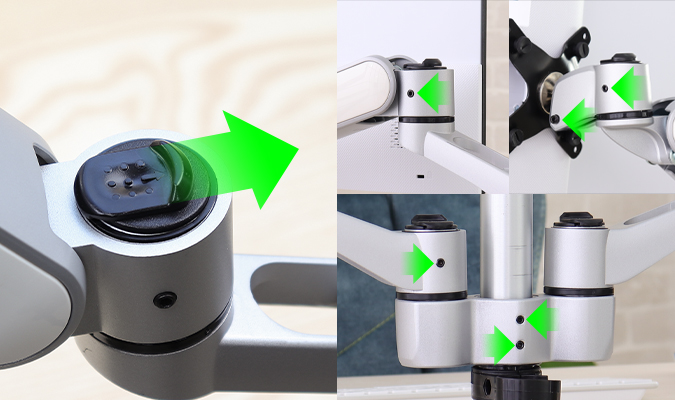

Pivot Lock • Tension Adjustment
The package includes an L-shaped Allen wrench, allowing you to adjust pivot tension and prevent wobbling during use.
Quick Assembly • Safety Latch
Parts automatically lock in place to prevent accidental disconnection and damage. One push releases them for quick disassembly.
Pivot Lock • Tension Adjustment
The package includes an L-shaped Allen wrench, allowing you to adjust pivot tension and prevent wobbling during use.

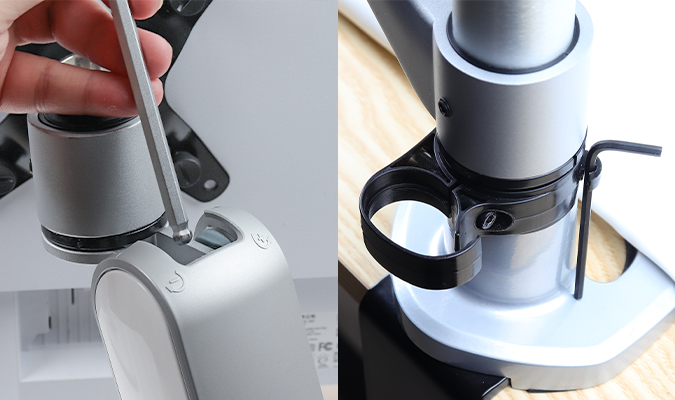

Adjustable Monitor Mount
The product comes with a large L-shaped hex wrench, allowing you to adjust the mount’s load capacity to achieve weight balance.

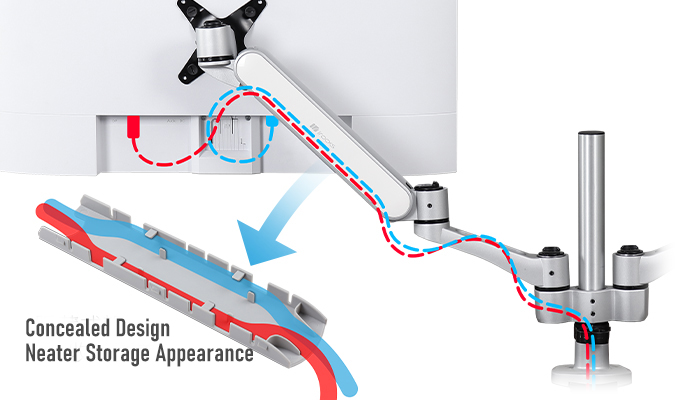

Cable Management and Anti-Slip Design
The anti-slip ring prevents the bracket on the main shaft from sliding, allows cable collection in one place, and includes a small hook for storing the hex wrench.
Adjustable Monitor Mount
The product comes with a large L-shaped hex wrench, allowing you to adjust the mount’s load capacity to achieve weight balance.
Cable Management and Anti-Slip Design
The anti-slip ring prevents the bracket on the main shaft from sliding, allows cable collection in one place, and includes a small hook for storing the hex wrench.
Your Space. Organized.
No more worries about where to store your cables—enjoy a neat and tidy workspace with ease.
Your Space. Organized.
No more worries about where to store your cables—enjoy a neat and tidy workspace with ease.
Product Features
• Aluminum alloy frame with refined texture and strong structural support
• Spherical pivot allows easy adjustment of screen position and angle
• 360-degree full rotation support
• Center post height adjustable by 20cm
• Weight capacity: 2–9KG
• Standard VESA 75x75 and 100x100 mounting patterns, compatible with most monitors
• Quick-release locking structure for easy and fast installation

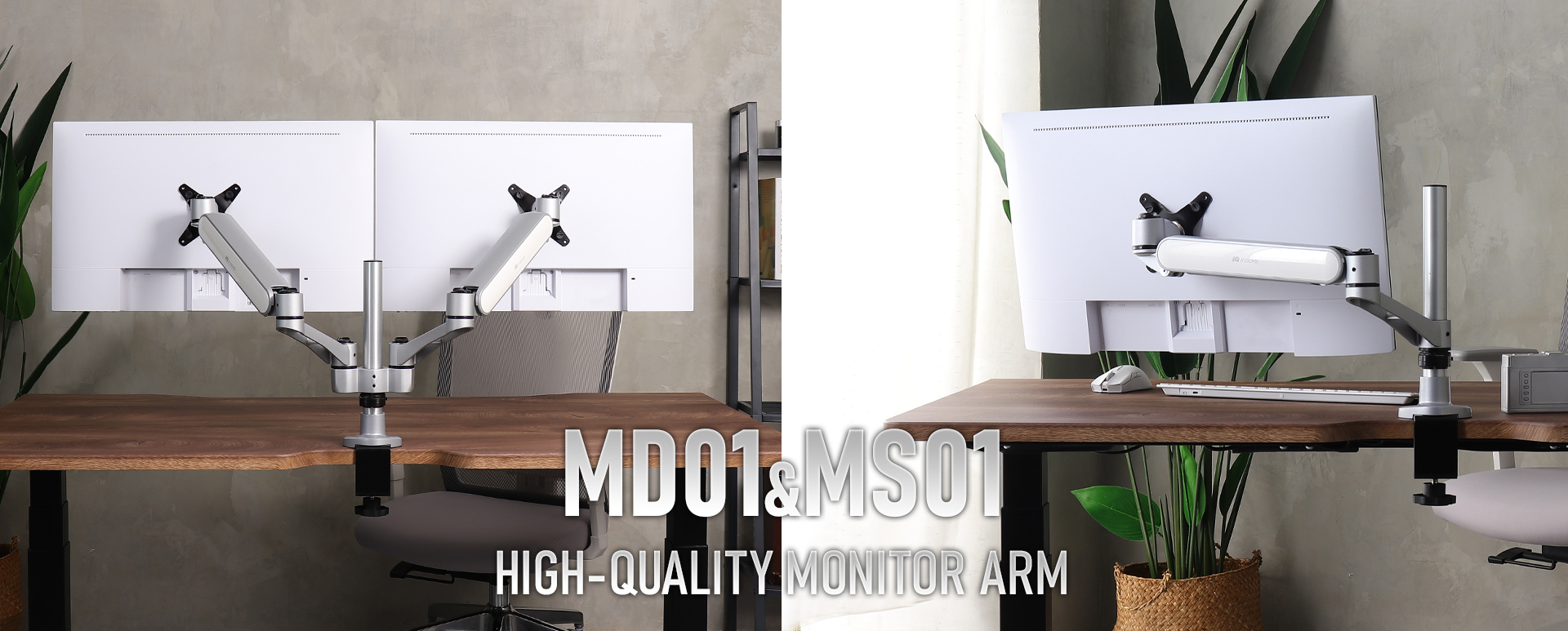

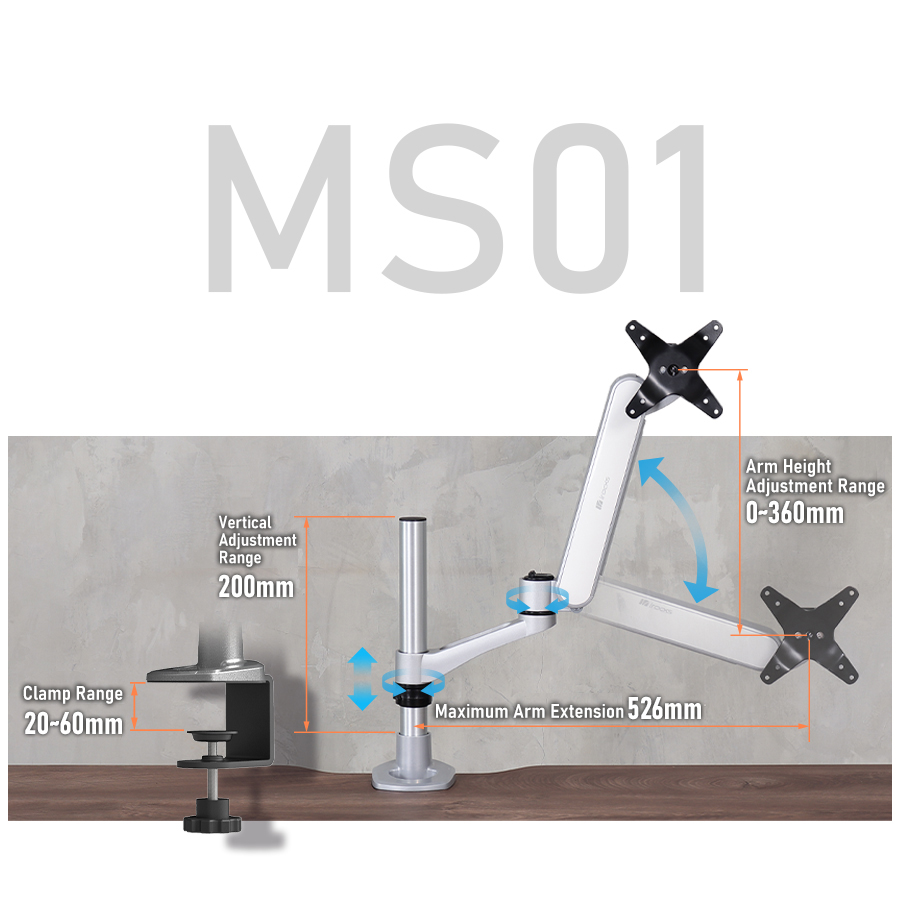

MS01 Single Monitor Arm
Product Specifications
• Color: Silver
• Main Structure: Mechanical spring arm, aluminum alloy support
• Load Capacity: 2–9 Kg per monitor
• Monitor Size: 17–32 inches
• Mounting: VESA 75x75mm / 100x100mm
• Arm Rotation: 360°
• Monitor Tilt: 105°
• Monitor Flip: 240°
• Monitor Rotation: 360°
• Height Adjustment Range: 100°, 30cm
• Max Extension Distance: 50cm
• Center Post Lift: 20cm
• Base Mounting: C-clamp (range 20–60mm)
• Country of Origin: Taiwan
• Warranty: 1 year
• Box Dimensions: 462 x 290 x 136mm
• Product Weight: 4KG

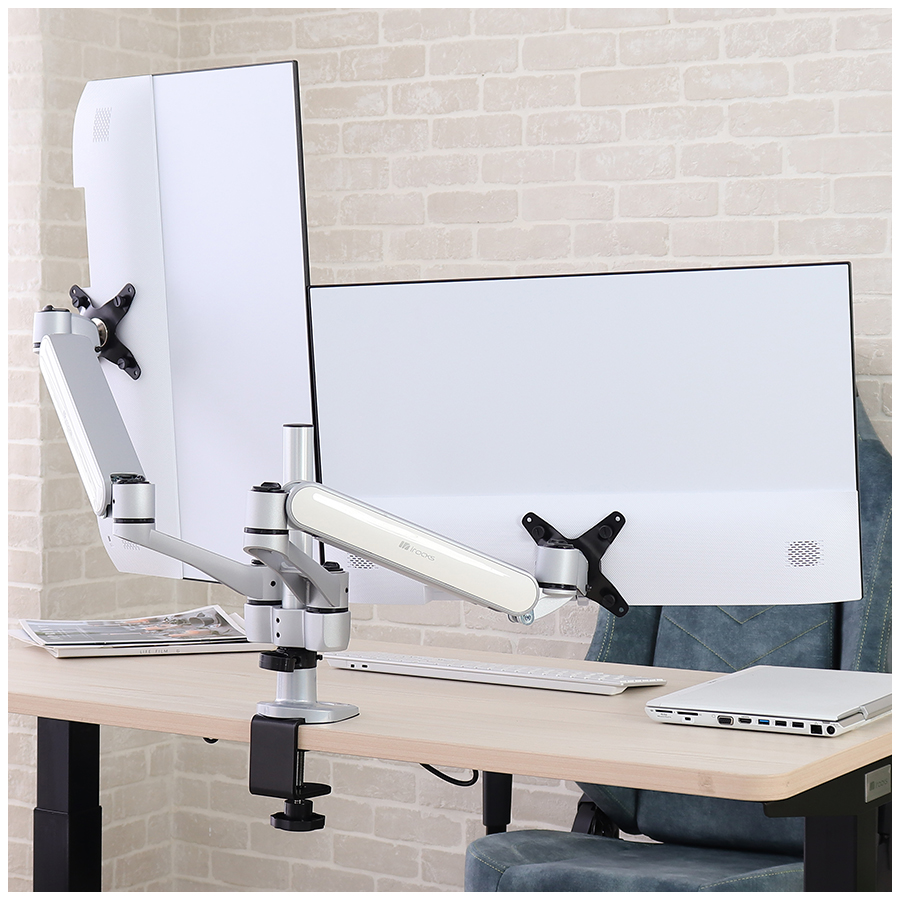

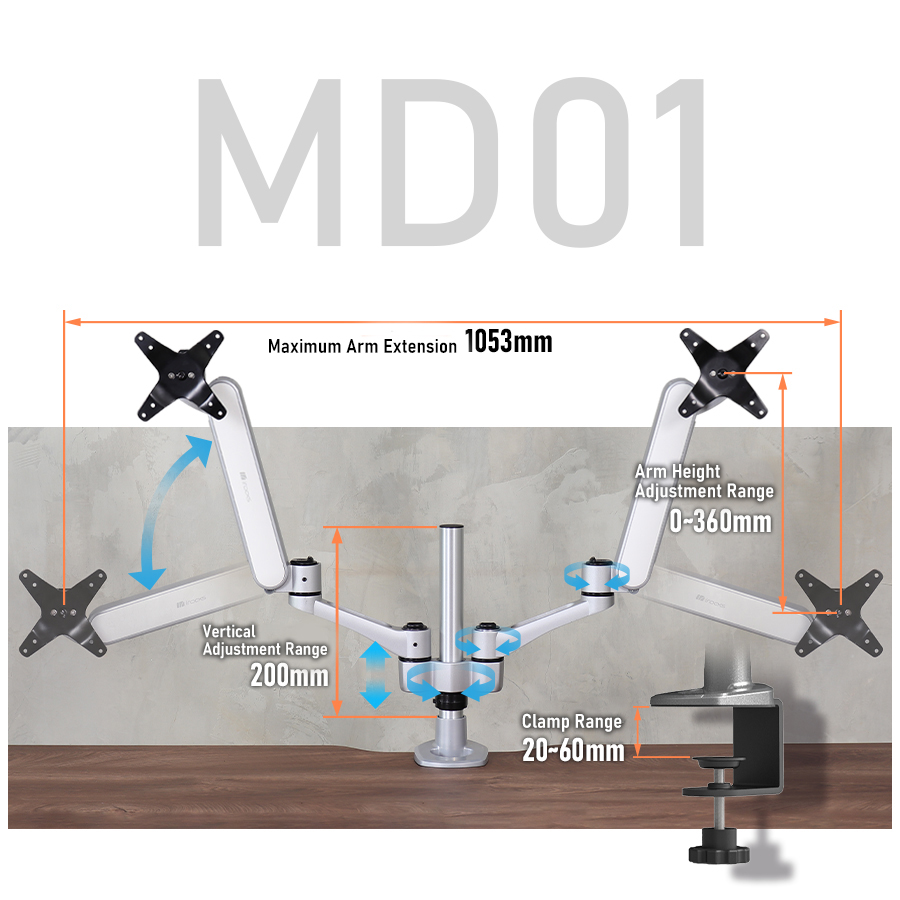

MD01 Dual Monitor Arm
Product Specifications
• Product Color: Silver (black base available through select resellers)
• Main Structure: Mechanical spring arm, aluminum alloy support
• Load Capacity: 2–9 Kg per monitor
• Monitor Size: 17–32 inches
• Mounting: VESA 75x75mm / 100x100mm
• Arm Rotation: 360°
• Monitor Tilt: 105°
• Monitor Flip: 240°
• Monitor Rotation: 360°
• Height Adjustment Range: 100°, 30cm
• Max Extension Distance: 50cm
• Center Post Lift: 20cm
• Base Mounting: C-clamp (range 20–60mm)
• Country of Origin: Taiwan
• Warranty: 1 year
• Box Dimensions: 526 x 382 x 136mm
• Product Weight: 7KG
